Keystone has expanded its assortment of PC mount screw terminals
Slim-Line PC Screw Terminals
Keystone has expanded its assortment of PC mount screw terminals to include new Slim-Line screw terminals in a vertical mounting configuration.

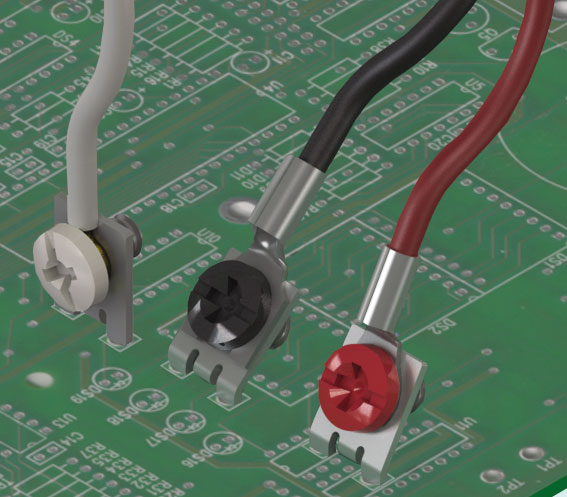

Rated for 15 Amps, these new devices are ideally suited for high density packaging on a PCB design requiring a minimal footprint wire-to-board connection. They feature a no-rock design with an exclusive anti-rotation feature. This design supports the terminal during installation on the board and when attaching #14-22 AWG wires, spades or ring terminals.
Combined with space-saving, cost effective attributes, the units are offered in 45º, 60º, and 90º orientation to the board enabling design versatility. Manufactured from brass with a matte-tin plate finish, these terminals are available with a 6-32 binding head machine screw installed and captivated on the terminals, as an unassembled terminal and screw kit or as the terminal only without any screw.
Screws are also available with colour coded heads in red, black, white, blue, green, yellow and clear for enhanced assembly identification and troubleshooting purposes.
Keystone has expanded its assortment of PC mount screw terminals to include new Slim-Line screw terminals in a vertical mounting configuration.
Rated for 15 Amps, these new devices are ideally suited for high density packaging on a PCB design requiring a minimal footprint wire-to-board connection. They feature a no-rock design with an exclusive anti-rotation feature. This design supports the terminal during installation on the board and when attaching #14-22 AWG wires, spades or ring terminals.
Combined with space-saving, cost effective attributes, the units are offered in 45º, 60º, and 90º orientation to the board enabling design versatility. Manufactured from brass with a matte-tin plate finish, these terminals are available with a 6-32 binding head machine screw installed and captivated on the terminals, as an unassembled terminal and screw kit or as the terminal only without any screw.
Screws are also available with colour coded heads in red, black, white, blue, green, yellow and clear for enhanced assembly identification and troubleshooting purposes.
Slim-Line PC Screw Terminals
Available in 90°, 60° and 45° Configurations
Easy to mount screw terminals are a practical low cost alternative to PC edge connectors.
- Will accept solid & stranded wire or wire crimp terminals.
- Supplied unassembled or with screw installed and captivated.
- Same mounting hole pattern as quick fit terminals which allows instant change between quick fit and screw terminals.
- Available with colour coded screws for enhanced visual identification.
- Simply add the colour screw suffix to a standard terminal Cat. No. to create the desired color coded terminal.
- As an example, Cat. No. 7758-7 would be a Captivated Screw Terminal with a yellow head screw
Specifications:
- Current Rating: 15 Amps
- Wire Range: #14-22 AWG solid or stranded wire
- Terminal: Brass, Tin Plated
- Screw: Brass, Nickel Plated
- Max Torque : 6 Inch pounds
For more information please contact our sales team on +353 1 8020044 or email sales@futura.ie
