Code: 0903 264 6824

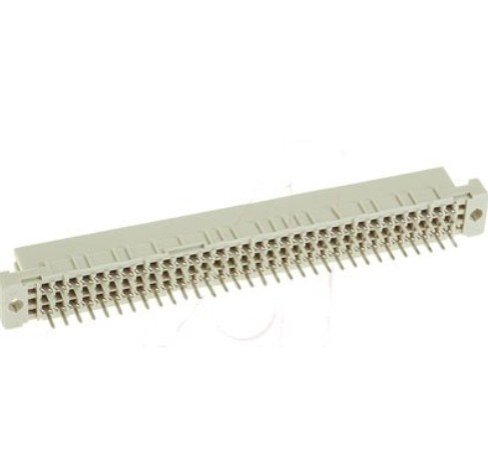

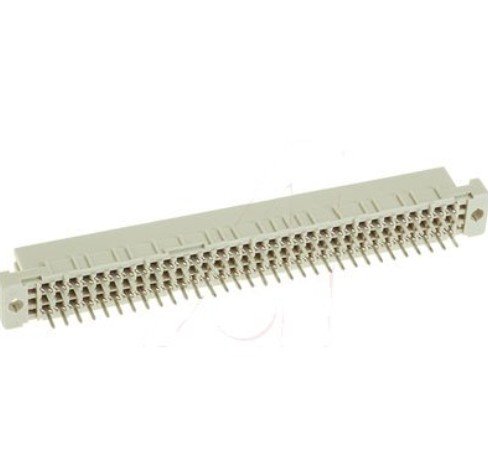

HARTING 09032646824 DIN 41612 backplane connector with 64 positions, 2.54 mm pitch and solder termination. High-quality industrial connector available with fast delivery.DIN41612 Type C 64-way Female Straight Solder Pins Rows A & C Class 2 Mating Cycles= 400
Minimum Order Quanitity of:
5
From €1.84 ex VAT
Enquire Now
QtyAdd to Cart
| Quantity Breaks (per unit) | |
|---|---|
| 1 to 4 | €1.84 |
| 5 + | €1.84 |
DIN41612 Type C 64-way Female Straight Solder Pins Rows A & C Class 2 Mating Cycles= 400
Specifications
- Manufacturer: HARTING
- Product Category: DIN 41612 Connectors
- Product: Receptacles
- Number of Positions: 64 Position
- Number of Rows: 2 Row
- Pitch: 2.54 mm
- Type: Type C
- Termination Style: Solder Pin
- Mounting Angle: Straight
- Current Rating: 2 A
- Insulation resistance >1012 Ω
- Contact resistance ≤20 mΩ
- Contact Plating: Gold
- Contact Material: Copper Alloy
- Packaging: Tray
- Housing Material: Thermoplastic (TP)
- Rows Loaded: a + c
- Subcategory: Backplane Connectors
- Tail Length: 2.9 mm
- Limiting temperature:-55 ... +125 °C
- Unit Weight: 13.280 g
