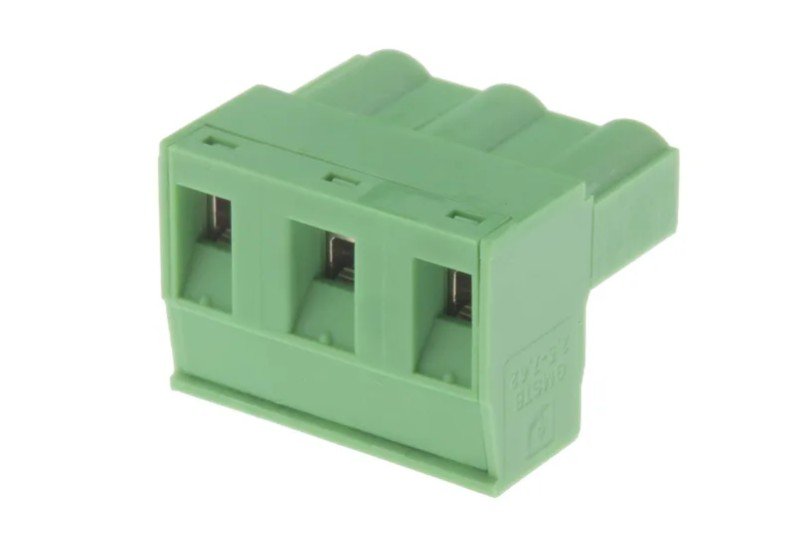

Code: CIF03007
CIF03007 is a 3-pole pluggable screw terminal block with 7.62 mm pitch, rated 16 A / 600 V, side-stackable design, and robust polyamide housing. Ideal for industrial and PCB connections.
Minimum Order Quanitity of:
100
From €0.45 ex VAT
In Stock
QtyAdd to Cart
| Quantity Breaks (per unit) | |
|---|---|
| 1 to 99 | €0.45 |
| 100 + | €0.45 |
Specifications
- Number of levels 1
- Sides configuration Side stackable
- Pitch 7,62mm
- Voltage 600V
- Current 16A
- Wire section 0.05 ÷ 2.5mm2 / 30 ÷ 12 AWG
- Available approvals UL, VDE, IMQ, CSA
Features:
- Screw dimension M3
- Operating temperature range -40°C ÷ 105°C
- Contact Resistance ˂ 15 mOhm
- Insulation resistance ˃ 1 GOhm
Materials:
- Screw material Nickel-plated copper alloy
- Insulating housing material PA Polyamide
- Insulating material group I (CT I ˃= 600V)
- Self-extinguishing class UL94 V0
Available Colours:
- Green
- Black
- Light grey
- Dark grey
- Orange
- Blue
- Red
- Other colours on demand
For further information, please send us an email at sales@futura.ie
