Code: Plane Power Crocodile Cable Carrier
The Plane Power Crocodile Cable Carrier is the quickest method of transferring power from a GPU to the aircraft.
Price on Application
The Plane Power Crocodile Cable Carrier is the quickest method of transferring power from a GPU to the aircraft.
- Protection of 400 Hz or 28 VDC power supply cables to aircraft
Light weight, reduces operator effort
Unique in-basket harness release system, allows rapid change of replacement harnesses
Easy basket replacement
Compact stowed footprint
Accommodates uneven surfaces
The Plane Power cable carrier has a unique articulating pivot joint integrated at intermediate joints and fixed end. This allows the carrier arms to move freely in response to uneven surfaces. It also removes component stresses and reduces maintenance requirements.
Unique in-basket harness release system, allows rapid change of replacement harnesses
Easy basket replacement
Compact stowed footprint
Accommodates uneven surfaces
The Plane Power cable carrier has a unique articulating pivot joint integrated at intermediate joints and fixed end. This allows the carrier arms to move freely in response to uneven surfaces. It also removes component stresses and reduces maintenance requirements.

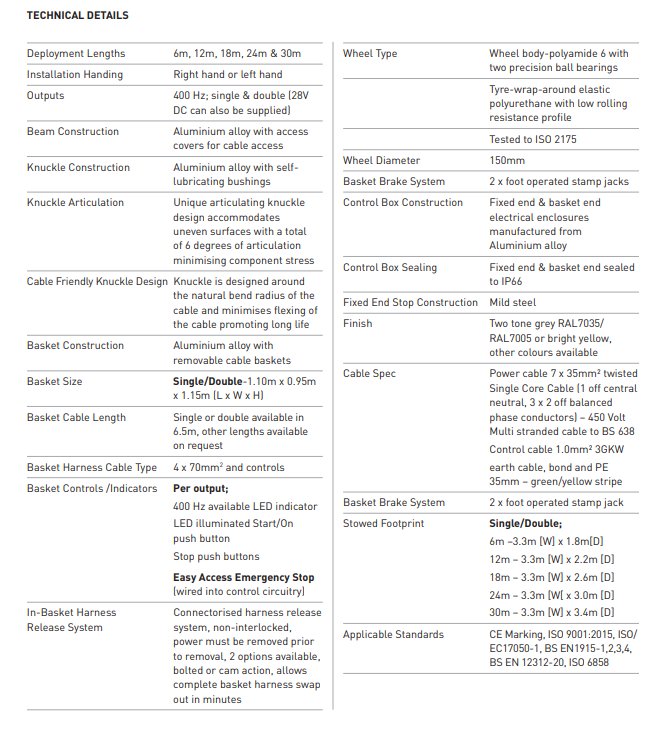

Deployment lengths: 6m, 12m, 18m, 24m and 30m
Outputs: 400 Hz, single and double options (28V DC can also be supplied)
Aluminium alloy construction
Knuckle articulation: Unique articulating knuckle design accommodates uneven surfaces (6 degrees of articulation)
Basket controls: 400 Hz available LED indicator; LED illuminated start/on push button; stop push buttons
Outputs: 400 Hz, single and double options (28V DC can also be supplied)
Aluminium alloy construction
Knuckle articulation: Unique articulating knuckle design accommodates uneven surfaces (6 degrees of articulation)
Basket controls: 400 Hz available LED indicator; LED illuminated start/on push button; stop push buttons
