Code: PLT3S-C0
Secure your cables efficiently with Panduit PLT3S-C0 Cable Ties. Crafted from durable nylon, these 11.5-inch ties boast a 50 lb tensile strength and are suitable for outdoor use.
Price on Application

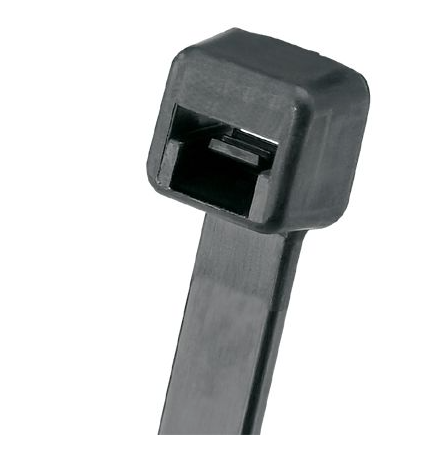

Panduit | PLT3S-C0 | Locking Cable Tie Z 292mm x 4.8mm
Specification
- Product Type Premium Cable Tie
- Color Black
- Environment Indoor/Outdoor
- Material Nylon 6.6
- Resistance Properties UV-Resistant, Weather-Resistant
- Overall Length (In.) 11.5
- Overall Length (mm) 292
- Body Width (In.) 0.19
- Body Width (mm) 4.8
- Body Thickness (In.) 0.052
- Body Thickness (mm) 1.3
- Maximum Bundle Diameter (In.) 3
- Maximum Bundle Diameter (mm) 76
- Minimum Bundle Diameter (In.) 0.06
- Minimum Bundle Diameter (mm) 1.5
- Minimum Loop Tensile Strength (N) 222
- Minimum Loop Tensile Strength (lb) 50
- Maximum Operating Temperature (°C) 85
- Maximum Operating Temperature (°F) 185
- Minimum Operating Temperature (°C) -60
- Minimum Operating Temperature (°F) -76
- Minimum Installation Temperature (°C) -20
- Minimum Installation Temperature (°F) -4
- Standards Met CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Compliant
- For Use With GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2
- Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
